3D Hand Printer (Concept) (2021)

Digital, modelled to scale in Solidworks and rendered with materials in PhotoView 360 engine.

Solidworks & PhotoView 360, Photoshop

This prototype was conceived for the final project of my Ideation & Prototyping course during Summer 2021. The assignment was a ‘Future Casting Project,’ in which, working in small groups, we envisioned a potential future world and an invention we would construct for it. Inspired by post-apocalyptic literature, media, and video games — specifically Death Stranding — my group of three created a future in which drastic climate change creates weather patterns of acid rain that rapidly degrades anything it comes into contact with. As such, it becomes a necessity for households to possess futuristic 3D-printing technology to analyze faults in their wares and rapidly repair them. Inspired by Subnatica’s handheld scanning devices, we conceptualized a handheld 3D printer with a scanner integrated into the printer head. Thus, the user could easily have the device find the points of repair and guide the user accordingly to a full repair.

These are the two rough prototype sketches by my groupmates from the project, Keiani Allen & Anna Vandehey. Based on these concepts I created my own ergonomic scale model in SolidWorks, integrating our collective design choices, components, and aesthetics. I constructed the device piece-by-piece, assigning the appropriate corresponding material to each element. From there, I assembled the pieces to form the solid model in SolidWorks. Most importantly, I assembled the model with the appropriate mates so that the mechanical parts each moved appropriately. Lastly, I worked extensively with the Photoview 360 rendering engine to create a 3D model that reflected the appropriate visuals and materiality I envisioned for the product. Below are the Photoview renders of each individual part of the 3D printer.

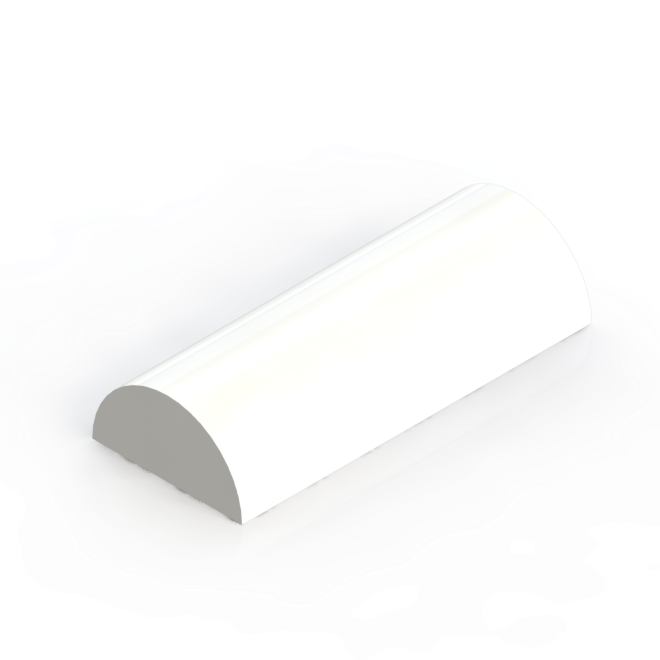

From top left: 3D hand printer body, material canister, canister enclosure, printer head (front and rear view), front-facing scanner.
